產品關鍵字：布草洗脫機,床單洗脫機,酒店床單洗脫機,酒店洗滌設備,酒店洗滌機械
產品分類：紡機,印染整理機械
產品編號：700
類型：洗滌機械
|

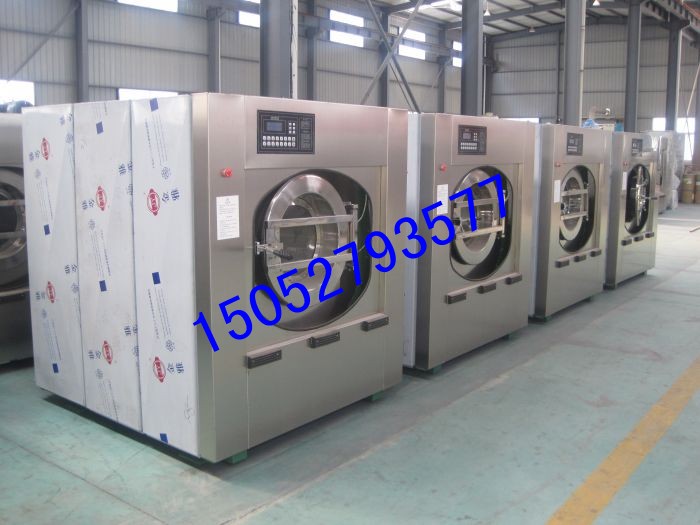

醫藥高新區威士潔機械廠生產的酒店布草洗脫機遠銷東南亞和中東地區
布草洗脫機技術參數：
|
型號Type
|
XTQ-15
|
XTQ-20
|
XTQ-30
|
XTQ-50
|
XTQ-70
|
XTQ-100
|
|
額定容量Rated capacity(kg)
|
15
|
20
|
30
|
50
|
70
|
100
|
|
最小Min.(kg)
|
10
|
15
|
25
|
35
|
50
|
80
|
|
最大Max.(kg)
|
15
|
20
|
30
|
50
|
70
|
100
|
|
內膽尺寸Inner dimension
|
|
|
|
|
|
|
|
直徑Diameter(mm)
|
650
|
750
|
895
|
1080
|
1200
|
1200
|
|
徑深Diameter deepness(mm)
|
450
|
450
|
450
|
625
|
650
|
850
|
|
體積Volume(Lit)
|
149
|
199
|
332
|
572
|
735
|
995
|
|
外形尺寸Overall dimension
|
|
|
|
|
|
|
|
高Hight(mm)
|
1510
|
1600
|
1700
|
1900
|
1960
|
2000
|
|
長Length(mm)
|
1010
|
1150
|
1550
|
1850
|
1750
|
2050
|
|
寬Width(mm)
|
1100
|
1110
|
1550
|
1650
|
1750
|
1750
|
|
轉籠速度Drum speed
|
|
|
|
|
|
|
|
洗滌轉速Washing rotate speed(r/min)
|
50
|
50
|
36
|
36
|
35
|
31
|
|
均布轉速Uniformity speed(r/min)
|
90
|
90
|
72
|
75
|
70
|
65
|
|
中脫Mid speed(r/min)
|
450
|
450
|
420
|
380
|
350
|
310
|
|
高脫High speed(r/min)
|
900
|
900
|
780
|
760
|
680
|
680
|
|
排水閥Draining valve
|
|
|
|
|
|
|
|
排水閥Draining valve(mm)
|
φ70
|
φ70
|
φ76
|
φ90
|
φ90
|
φ90
|
|
進水管Filling with water
|
|
|
|
|
|
|
|
熱水管Hot water pipe(")
|
3/4
|
3/4
|
1 1/2
|
1 1/2
|
1 1/2
|
1 1/2
|
|
冷水管Cold water pipe(")
|
3/4
|
3/4
|
1 1/2
|
1 1/2
|
1 1/2
|
1 1/2
|
|
蒸汽管Steam pipe
|
|
|
|
|
|
|
|
蒸汽管Steam pipe(")
|
3/4
|
3/4
|
3/4
|
1
|
1
|
1
|
|
每缸耗氣量Air consume capacity(kg)
|
15
|
18
|
20
|
30
|
45
|
50
|
|
洗滌耗水量Washing water consume capacity(kg)
|
300
|
400
|
500
|
750
|
1200
|
1500
|
|
電源Power supply
|
|
|
|
|
|
|
|
電源Power supply
|
380V+N-3PH-50HZ
|
|
電機功率Motor power(kw)
|
1.5
|
2.2
|
3
|
4
|
5.5
|
7.5
|
|
電加熱功率Electric heat up consumption(kw)
|
10
|
15
|
20
|
30
|
45
|
60
|
|
機器重量Machine weight
|
|
|
|
|
|
|
|
重量(約)Weighe(kg)
|
950
|
1200
|
1500
|
2300
|
2500
|
3000
|
|
聯系人；陳蘭，手機：15052793577
